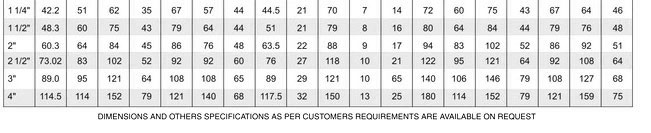

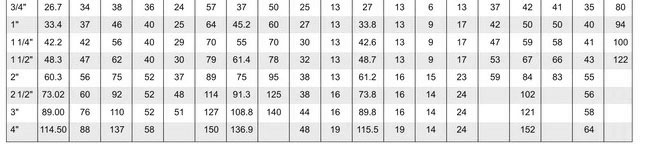

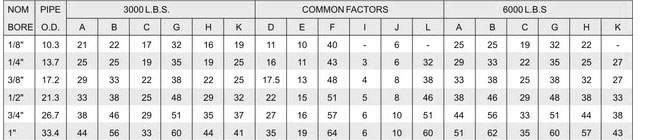

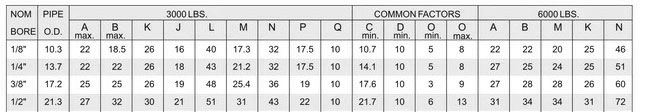

STANDARD : All Dimensions are in mm and Confirm to ANSI B 16.9 and MSS SP -43.
RADIUS : Radius of Short Radious Elbows is 1 times nominal Pipe Diameter. Radius of Long Radius Elbows is 1-1/2 nominal pipe diameter
MATERIAL : S.S. 304/304L/316/316L/321 Carbon Steel & Alloy Steel
|
